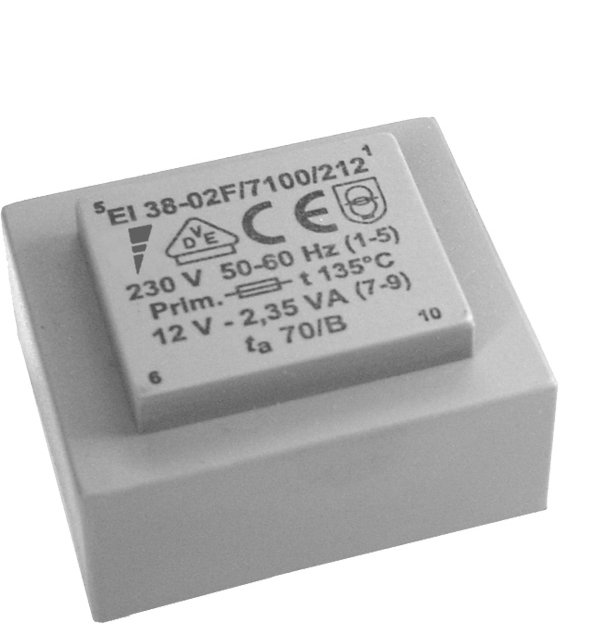

EI 38 Safety Transformer

Features
  • Safety transformer class II
  • Approved to EN 61558
  • VDE approved
  • Primary voltage 24 - 660 Vac
  • Secondary voltage from 3 - 240 Vac
  • Output power up to 6 VA
  • Two chamber bobbin
  • Customizable: available with various voltage levels
Benefits
  • Permanent corrosion protection, high insulation value and maximum electrical reliability
  • Double input and output voltage for series or parallel connection
  • Primary and secondary voltage and pin configuration on request
EI 38Voltage (Vac)Current (A)Leakage (mA)Width (mm)Depth (mm)Height (mm)Weight (Kg)CaseDownload
-02/...230--34.922.140.60.102O
-12/...400--34.928.140.60.15O
-13/...660--34.928.155.60.15K
