Star point snubber with excellent attenuation to reduce dV/dt

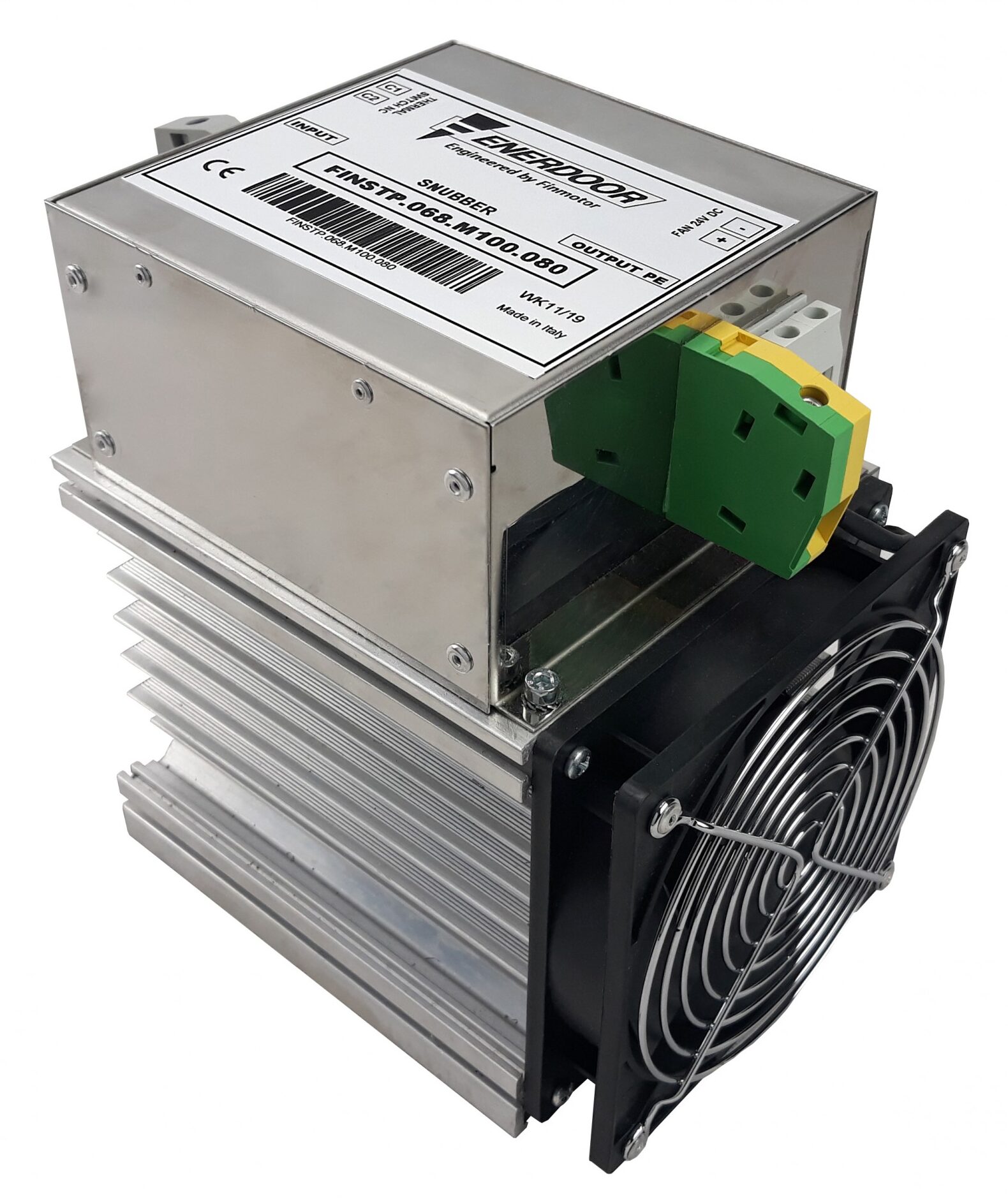

FINSTP Star Point Snubber

Approvals
Features
  • Reduces dV/dt star point -PE
  • Protection of motor winding insulation and bearings
  • Remote contact indicator
  • Compact dimension due to the parallel installation
Benefits
  • Very low power loss
  • Over temperature protection
  • Easy installation
  • Only one model for unlimited HP motors
FINSTPVoltage (Vac)Current (A)Carrier Frequency (kHz)Output Frequency (Hz)Width (mm)Depth (mm)Height (mm)Weight (Kg)CaseDownload
.068.M100600-0 - 550 - 1000125185.519041
.100.M100600-0 - 550 - 1000125185.519041

Case 1

Case 1
