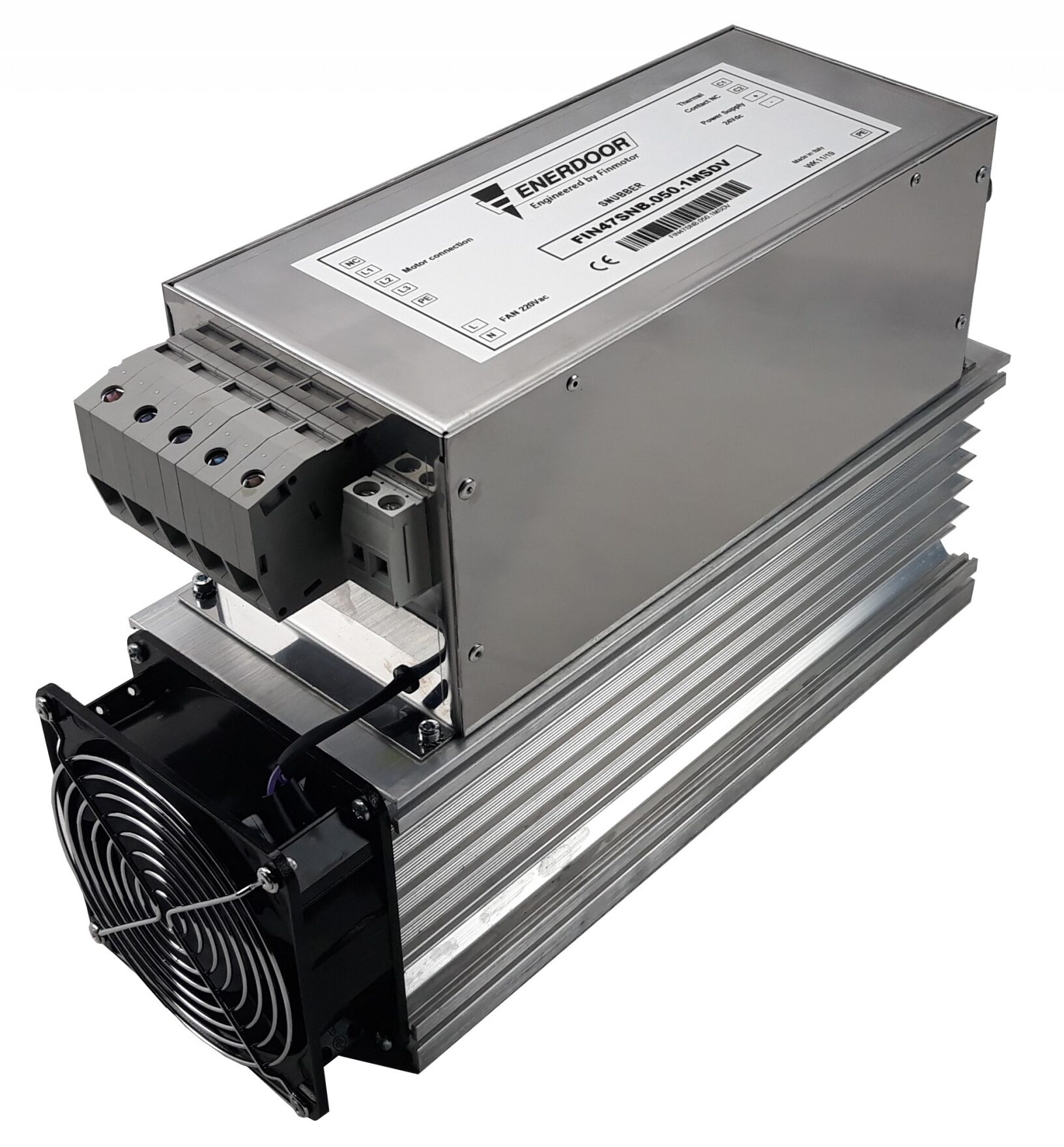

FIN47SNB Snubber dV/dt Filter

3-phase plus neutral star point snubber with excellent attenuation to reduce dV/dt

Fin47SNB
  • Fin47SNB

Features

  • Three-phase plus neutral star point snubber
  • Nominal voltage up to 600 Vac
  • Protects motor windings, insulation and bearings
  • Only one model for unlimited HP motors
  • Compact dimensions due to parallel installation
  • Reduces dV/dT

Benefits

  • Very low power loss
  • Remote contact indicator
  • Easy installation

Download Datasheet

EN
Request info

Approvals

Markets - Fin47SNB Snubber

Applications - Fin47SNB Snubber

Solutions - Fin47SNB Snubber

Fin47SNB Voltage (VAC) Current (A) Leakage (mA) Width (mm) Depth (mm) Height (mm) Weight (kg) Case
FIN47SNB.050.1M.X.Y 600 - - 125 235 224 5 1
FIN47SNB.050.2M.X.Y 600 - - 125 235 368 10 2
FIN47SNB.050.1M.X.Y.F 600 - - 155 235 224 5 3
FIN47SNB.050.2M.X.Y.F 600 - - 155 235 368 10 4
FIN47SNB.050.1M.X.Y.MDSX 600 - - 155 235 368 7
FIN47SNB.050.1M.X.Y.HV 600 - - 155 235 368 7
