Modern variable frequency drives (VFDs) and inverter-based control systems provide outstanding efficiency and flexibility for motor operation – but they also introduce new electrical challenges.

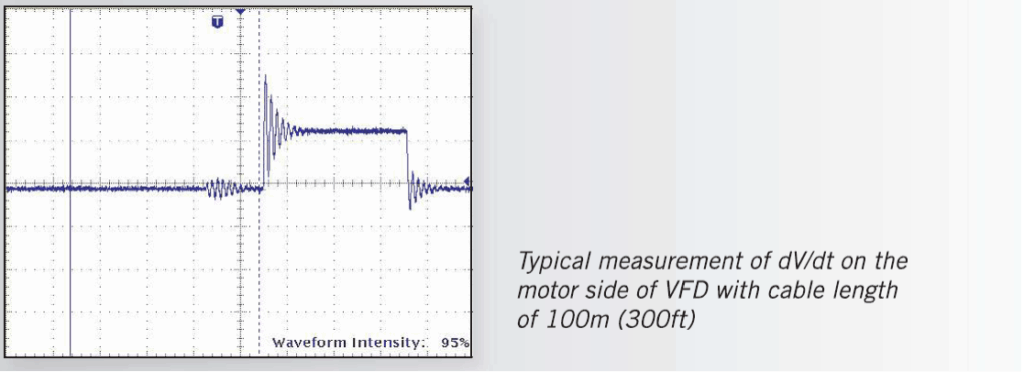

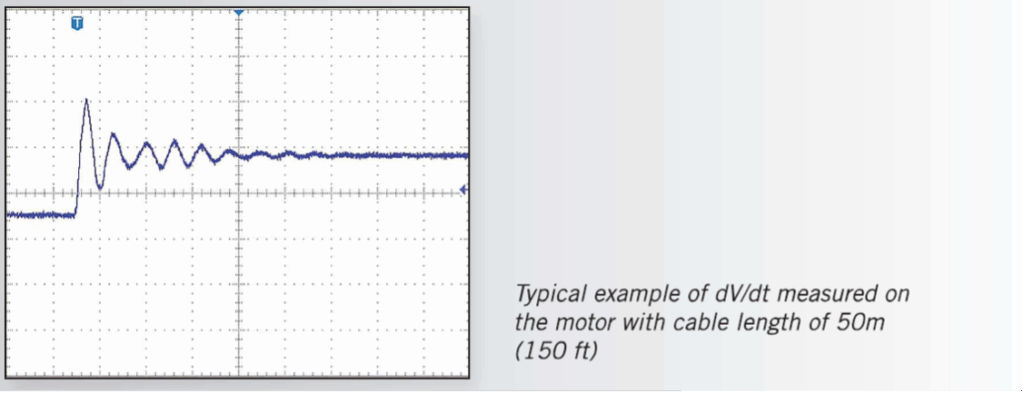

The high switching frequencies used in modern power electronics generate voltage reflections, overvoltage peaks, and steep dV/dt transitions that can damage motors over time, especially when long cable runs are involved.
Enerdoor Motor Protection Filters are designed to protect electric motors from these harmful effects, ensuring reliable performance, reduced maintenance, and extended service life.
By improving waveform quality and reducing voltage stress, Enerdoor solutions help maintain stable operation and prevent premature motor failure in industrial and commercial.
Typical problems caused by VFD-driven motors:
- Voltage spikes and reflections at the motor
- High dV/dt rates stressing the insulation system
- Bearing currents leading to mechanical damage
- Overheating and increased vibration
- Electromagnetic interference (EMI) affecting nearby equipment
- Reduced motor lifespan and unplanned downtime
Motor Protection Solutions
Enerdoor offers a complete range of motor protection devices designed to address the most common problems associated with VFD-driven and inverter-fed motors.
Each solution is optimized for a specific level of protection, depending on cable length, system voltage, and operating frequency.
Output Reactors
Enerdoor Output Reactors protect both motors and drives by limiting current peaks and reducing voltage transients at the output of inverters.
They act as a buffer between the drive and the motor, filtering harmonic content and improving overall power quality.
Typical applications include:
- Industrial automation and VFD systems
- Pumps, compressors, and fans
- Conveyors and processing machinery
- Hybrid power systems
Benefits:
- Limits inrush current and transient overvoltage
- Improves drive and motor performance
- Increases system reliability and extends component life
- Reduces acoustic noise and mechanical stress
dV/dt Filters
Enerdoor dV/dt Filters are designed to reduce the rate of voltage rise (dV/dt) at the motor terminals.
By smoothing the switching pulses generated by the inverter, these filters limit voltage spikes, protecting motor insulation and preventing breakdowns caused by overstress or partial discharge.
Typical applications include:
- Motors powered by VFDs with long cable runs (>50-75 meters)
- Automation and process control systems
- HVAC compressors, fans, and pumps
- Industrial drives
Benefits:
- Reduces dV/dt and minimizes voltage stress on motor insulation
- Prevents premature insulation failure and bearing wear
- Extends motor life and reduces maintenance costs
- Simple installation between drive output and motor input
Sine Wave Filters

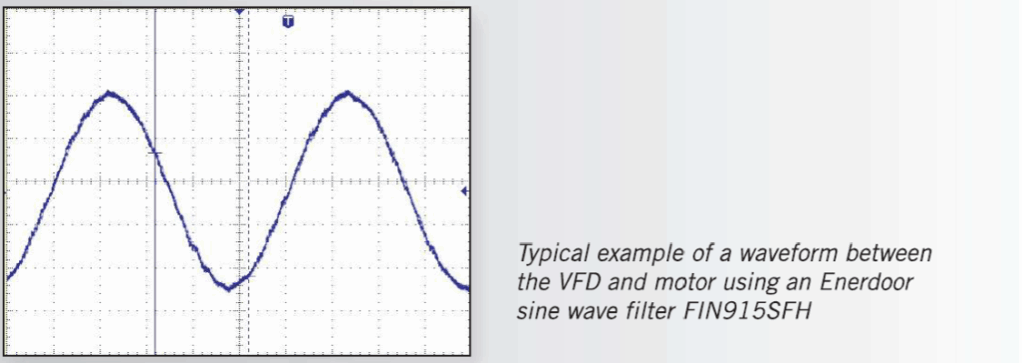

Enerdoor Sine Wave Filters convert the PWM (Pulse Width Modulated) output of a drive into a nearly pure sinusoidal waveform, ideal for applications with long cable lengths or where maximum motor protection is required.
By eliminating the high-frequency switching noise, sine wave filters protect the motor and reduce electromagnetic emissions into the network.
Typical applications include:
- Remote motor installations with long cable distances
- High-performance automation systems
- Marine, HVAC, and pump systems
- Waist water, oil and gas
Benefits:
- Provides a clean sinusoidal voltage waveform
- Reduces motor heating, noise, and bearing currents
- Prevents electromagnetic interference (EMI) to surrounding equipment
- Enables longer cable lengths without voltage reflection issues
High Frequency Reactors
Enerdoor High Frequency Reactors is a unique solution for high frequency spindle application to protect both motors and drives by limiting current peaks and reducing voltage transients at the output of inverters.
They act as a buffer between the drive and the motor, filtering harmonic content and improving overall power quality.
These products are designed to work with output frequency up to 30KHz for very high speed motor applications maintaining an excellent performance and linearity versus frequency and current.
Snubber

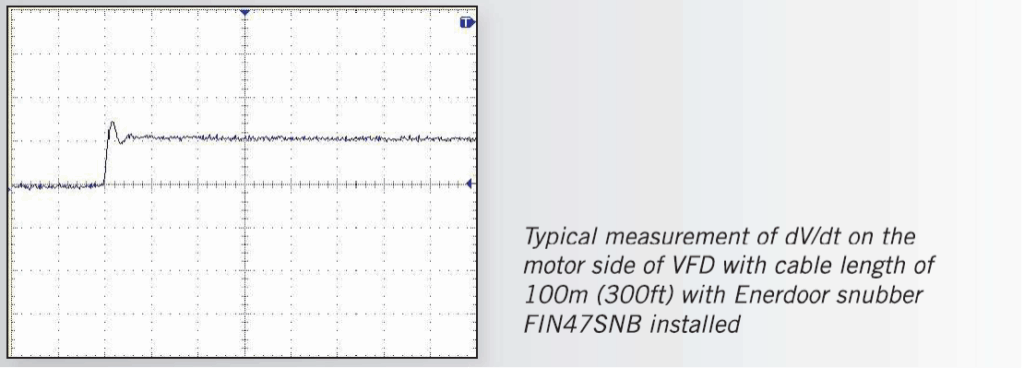

The Enerdoor snubber (FIN47SNB) is a distinctive solution engineered to minimize both common mode and differential mode noise. This specialized snubber operates in parallel with the system, offering an ideal remedy for clients seeking to enhance the reliability of winding insulation and bearings. Enerdoor also offers the star point version (FINSTP) designed specifically for common mode peak reduction to the ground.
Enerdoor Motor Protection Solutions
Enerdoor’s motor protection portfolio provides a complete defense against electrical and mechanical stress in modern inverter-driven systems.
By combining dV/dt filters, sine wave filters, and output reactors, Enerdoor ensures that each installation achieves the highest level of protection and efficiency.
These solutions help engineers and plant operators:
- Maintain reliable motor operation even in demanding environments
- Prevent electrical insulation failures and bearing damage
- Extend motor and drive lifespan
- Improve system stability, efficiency, and energy savings
- Achieve compliance with international standards for EMC and power quality
Whether in automation, HVAC or heavy industry, Enerdoor Motor Protection Filters provide complete, long-term protection for your most valuable rotating assets.
