Motor Protection

Load Reactor

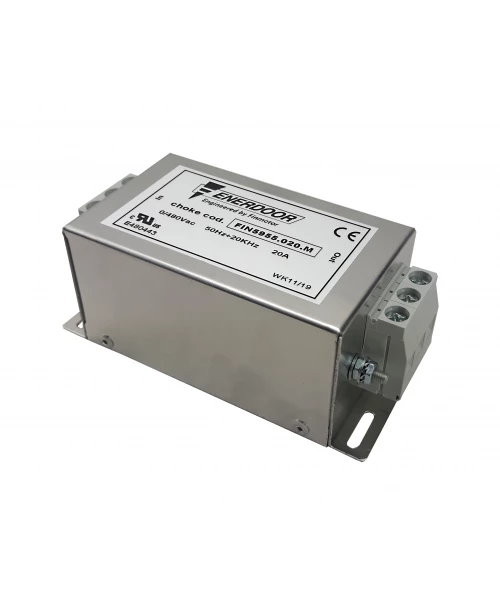

FIN955

Load Reactor

FIN5955 Differential Inductance

High frequency differential mode inductance to reduce dV/dt

FIN955
  • FIN955

Features

  • Differential mode inductance (load reactor)
  • Rated currents from 3 – 20A
  • Nominal voltage 600 Vac
  • Low power loss up to 250 Hz frequency output
  • Protects against voltage spikes on the motor
  • Increases motor life

Benefits

  • 2 Year warranty
  • Safety terminal block connectors
  • Very compact case
Request info

Approvals

Markets - FIN955 Load Reactor

Applications - FIN955 Load Reactor

Solutions - FIN955 Load Reactor

FIN955 Voltage (VAC) Current (A) Width (mm) Depth (mm) Height (mm) Weight (kg) Case Download
.003.M 600 3 60 125 51 0,4 1 Drawings

Enter your email
.006.M 600 6 60 125 51 0,4 1 Drawings

Enter your email
.010.M 600 10 60 125 51 0,45 1 Drawings

Enter your email
.020.M 600 20 60 125 51 0,45 1 Drawings

Enter your email
